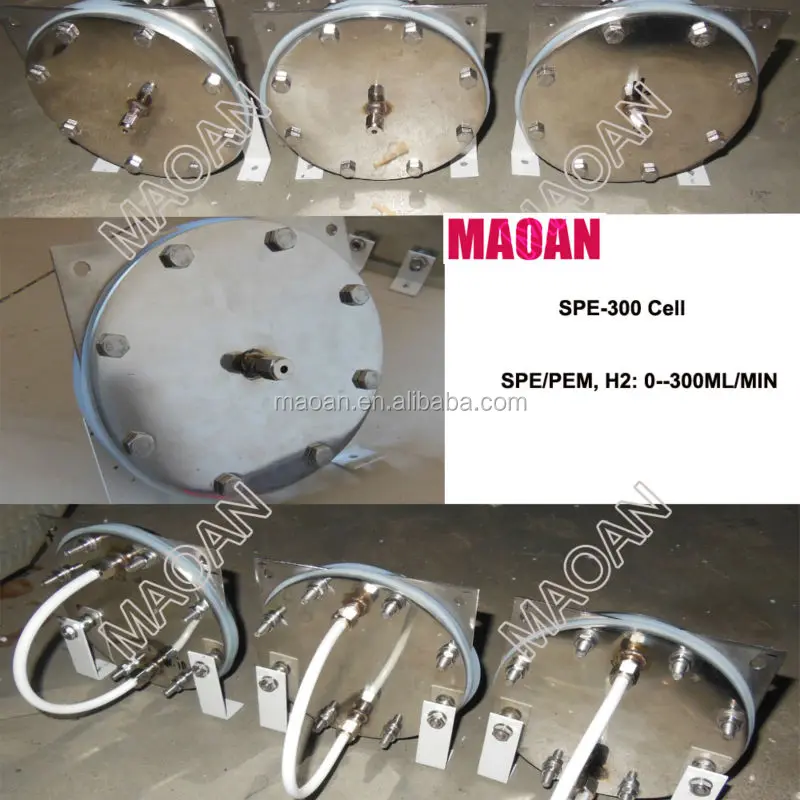

SPE Cell Introduction( Factory directly supply)
Word Advanced SPE/PEM technology Cell
Why Choose MAO AN Cell ? ( Very Important to Read Carefully)
1. Diameter: 136mm, bigger than other suppliers. One cell could produce more H2 gas.
2. Material used: Titanium 1 Metal.
Some supplier use stainless steel as electrode.
Some supplier use normal titanium material.
We use Iridium Titanium! Which is top level quality grade among Titanium.
3. Mostly Important! Single membrane cell voltage: ours all small than DC 2V !
Mostly customer maybe not know this technical data.
it is the directly indication for the cell quality and technical skill. Lower is better!
Other suppliers voltage is more than 2V. Ours guaranteed less than 2V!
4. Lower Price: As we directly sell, save middle selling fees and other fees.
SPE/PEM Technology Cell Introduction:
Electrolytic water meeting the requirements (With electrical resistivity >2MΩ/ cm, and deionized or redistilled water in
electronic and analysis industries can be used for this purpose.) , after being put into the anode chamber of electrolytic cell,
when power is switched on ,will be decomposed at once at the anode :
2H2 O = 4H+ + 2O-2
The decomposed negative oxyanion (O-2) will immediately release electron to form oxygen (O2), which will then be
discharged from the anode chamber, with some water, into the water tank. The water can be used circularly, and oxygen
will be discharged from the small hole of the top cover of the water tank into the atmosphere. The hydrogen proton,
in the form of aqua ion (H+XH2 O), and under the action of electric field force , through SPE ion membrane,
will arrive in the cathode to absorb electron to form hydrogen ,which will then be discharged from the cathode chamber.
