Large Hydrogen production plant GCD-9000 9L/min

FOB Reference Price:Get Latest Price
US $3,000-30,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
MAOAN
Model Number:
GCD-9000
Usage:
Hydrogen
Production Rate:
0--9000ML/MIN
Voltage:
220V
Power(W):
3500W
Weight:
500KGS
Dimension(L*W*H):
77*52*100*3pcs
Certification:
CE
Warranty:
ONE YEAR
After-sales Service Provided:
No overseas service provided
HYDROGEN:
9L/MIN
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood case and carton
Port
jinan
Lead Time :
20 days

                Hydrogen production plant

( Large flow rate, water electrolysis technology)

H2 output flow: 0--3L/min, 0--6L/min, 0---9L/min

H2 purity: 99.999%



GCD-3000/6000/9000 Characters:



1. Pressure, gas flow rate display, automatically stable pressure, stable output flow rate, output gas is produced on demand, complicate automatically work.

2. Stainless steel made purifier, has deoxidizer inside ( no need to activation), H2 output purity is

    higher; inside machine use silicon rubber ring ( lower content sulfur), greatly increased gas

    output quality, guarantee GC basic line stable.

3. Equipped with safety parts, sensitive and reliable, auto anti catalyst returning.

4. Three levels purification system. Output H2 purity if high.

5. Could be used in central hydrogen supply. Could be used at maximum flow rate.

6. Automatically power off if short of water

7. High pressure protection, if higher pressure than setting figure, will stop working.

8. Be made of H2 electrolysis system and outside power supply system two parts.

9. Could use at maximum flow rate for long time!





Technical Data:



       Model

  GCD-3000



GCD-6000

GCD-9000

H2 Flow ( ml/min )

0--3000

0--6000

0--9000

H2 Output Purity ( % )

                         99.999%

Output Pressure(bar )



                0----4bar(about 0.4MPa)

              (Under stable pressure)

Input Power ( W )

<1200

<2500

<3500

Power& Voltage

220/110±10% 50--60Hz

Fluctuation Rate of

Output Pressure ( bar)

<0.01

Water Requirement

distilled water

Water Consumption

145g/hr



290g/hr

440g/hr

Equipment Weight ( kgs )

100

150

200

Package Size (cm)

77*52*100(H2 electrolysis system)

52*39*50( Power supply system)

Number of H2 Electrolysis System

1

2

3





 H2 System:

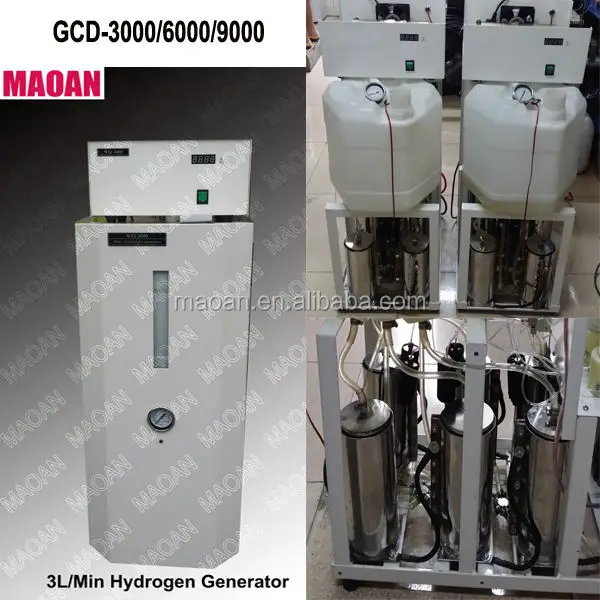

Frong View + Inside Cell

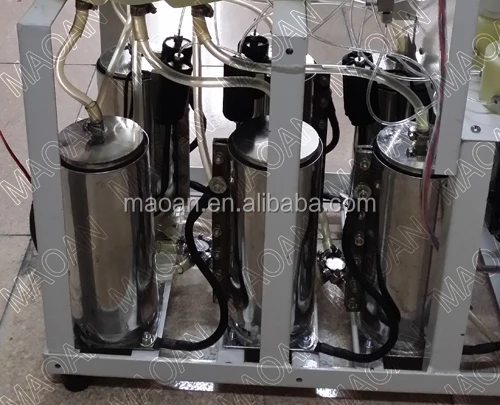

Inside Electrolysis Cell

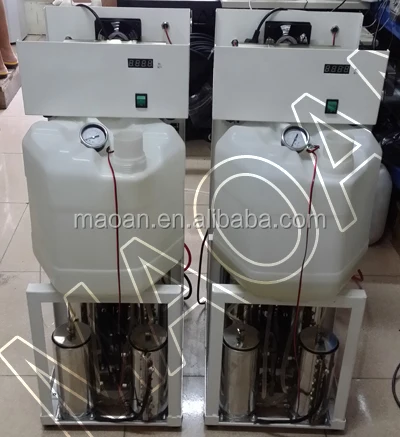

Large Water Tank



inside front.jpg

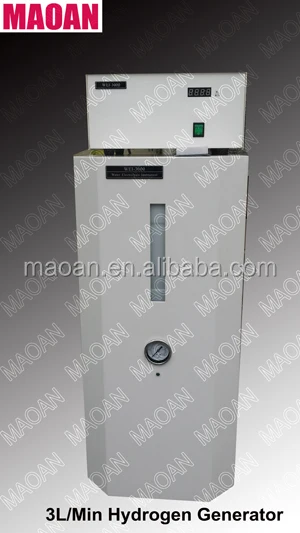

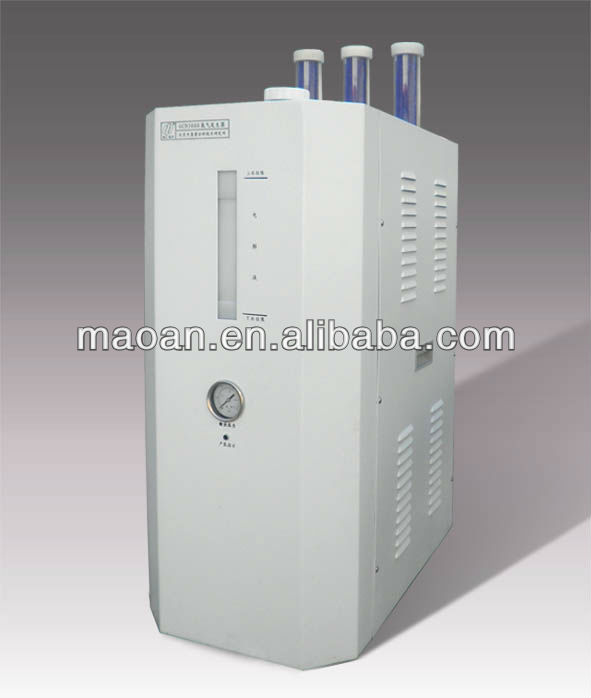

Whole View



whole outlooking.jpg

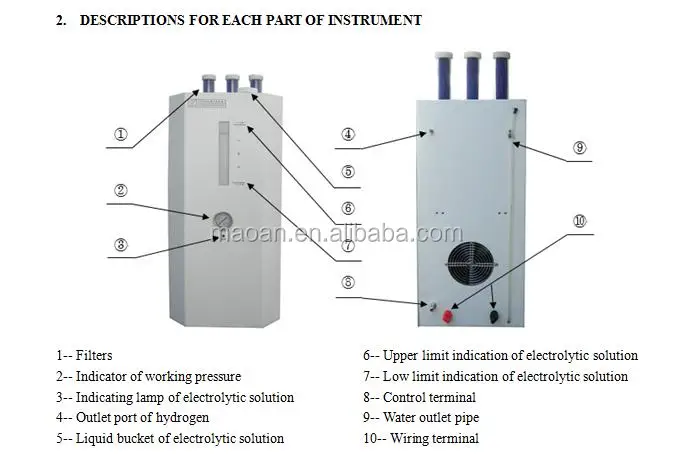

Each Parts Indication:

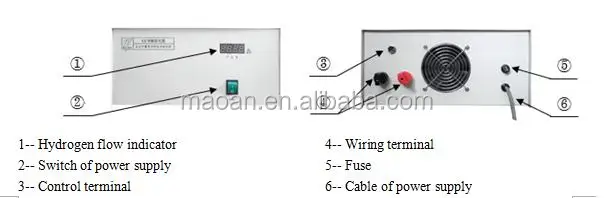

Power Supply Indication




3534-1
